Are you constantly losing thousands of hard-earned dollars on costly renovation mistakes, delayed building inspections, or predatory contractor quotes simply because you cannot interpret complex plumbing blueprints? In 2026, relying blindly on third-party site managers or attempting DIY property renovations without clear technical drawing literacy is an absolute financial disaster. A single misplaced drainage line, incorrectly sized riser, or misread piping fixture symbol can trigger catastrophic structural water damage, failed code compliance audits, and massive budget overruns.
You do not need an expensive four-year engineering degree to master site drawings, isometric schematics, and mechanical legend keys. In this comprehensive, long-form 2026 masterclass, we break down the exact mechanical systems, symbol frameworks, and spatial visualization techniques required to read plumbing schematics with absolute confidence. By moving from complete guesswork to professional blueprint comprehension, you will instantly protect your construction investments, streamline contractor communication, and ensure flawless mechanical execution on every project starting today.
1. Fundamental Anatomy of Plumbing Engineering Drawings
Plumbing blueprints serve as the universal graphical language connecting mechanical engineers, licensed plumbers, building inspectors, and property owners. These documents translate complex three-dimensional fluid transport networks—including potable hot and cold water delivery, sanitary waste drainage, venting systems, and storm runoff—into precise two-dimensional technical representations.
Understanding how to read these drawings begins with mastering the standardized layout sheets. Every certified engineering document follows a strict spatial hierarchy regulated by international building standards, ensuring that vital project data remains clear and accessible across all trade sectors.

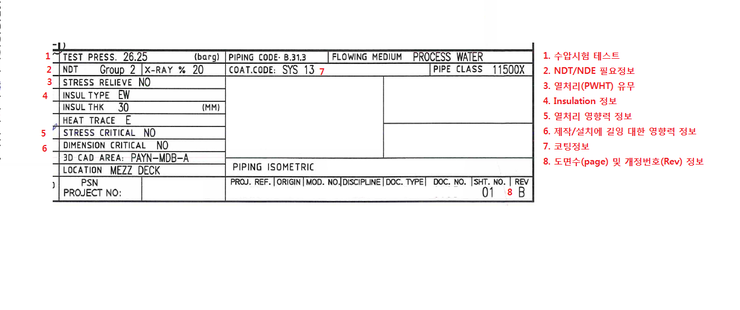

Decoding the Title Block and Revision History
The title block located in the bottom right corner of the architectural sheet acts as the navigational brain of the entire blueprint set. It establishes drawing ownership, site location, exact sheet identification (such as P for plumbing, M for mechanical, and A for architectural), and operational scaling factors.
Always audit the revision history log before interpreting any physical line on the page. Operating off an outdated blueprint revision leads to incorrect fixture placements, misplaced concrete slab penetrations, and illegal pipe sizing that breaches modern 2026 municipal building codes.
| Plan Type | Primary Sheet Indicator | Core Functional Purpose | Typical Scale Used |
| Site Utility Plan | P-001 / C-101 | External water main, sewer connection, storm drains | 1" = 20'-0" |
| Plumbing Floor Plan | P-101 through P-199 | Overhead layout of fixtures, supply runs, drain locations | 1/4" = 1'-0" |
| Isometric Schematic | P-301 through P-399 | 3D spatial representation of supply and DWV stacks | No Fixed Scale (NTS) |
| Riser Diagram | P-401 through P-499 | Vertical pipe distribution across multiple floor levels | Schematically Scaled |
| Plumbing Details | P-501 through P-599 | Cross-sections of backflow preventers, interceptors | 1/2" = 1'-0" |
Understanding Drawing Scales and Dimensional Accuracy
Plumbing floor plans are drawn to architectural scales where fractional inches represent physical feet. Utilizing an architect's scale ruler allows you to verify un-dimensioned pipe runs accurately. However, isometric schematics and riser details are intentionally drawn Not to Scale (NTS) to emphasize pipe connections, fitting angles, and valve arrangements without structural clutter.
2. Deciphering Plumbing Symbols and Line Types
The true barrier to reading plumbing blueprints lies in recognizing standardized line styles and fixture symbols. Lines on a plumbing schematic are not decorative; every line type, thickness, and dash pattern denotes a specific physical pipe material, fluid content, or direction of flow.
Navigating Pipe Line Identification Abbreviation Standards
Line designations combine solid or dashed line vectors with embedded alphabetical abbreviations. These markers explicitly inform installers which fluid medium travels through the conduit, preventing deadly cross-connections between potable water supplies and toxic non-potable waste systems.
DCW / CW: Domestic Cold Water line (pressurized supply delivering drinking water).
DHW / HW: Domestic Hot Water line (heated supply from central boilers or water heaters).
HWR: Hot Water Recirculation line (maintains continuous hot water availability at distant fixtures).
SAN / SS: Sanitary Sewer line (gravity-fed waste drainage carrying organic solids and graywater).
V / vent: Vent Pipe (dry air pipe extending through the roof to equalize trap pressure).
G / NG: Natural Gas line (delivering fuel gas to water heaters, boilers, and appliances).
Essential Mechanical Valve and Fixture Symbol Legend
Valves control fluid movement, direction, and system safety throughout a building. Recognizing valve symbols ensures you can locate master shut-offs during sudden emergency leaks or maintenance overhauls.
3. Mastering the DWV (Drain-Waste-Vent) System Architecture
The Drain-Waste-Vent (DWV) network is the most critical and complex component of any plumbing drawing. Unlike pressurized water supply lines that can bend around structural obstacles, DWV pipes rely entirely on downward gravity pitch and continuous atmospheric venting to move waste without clogging.
The Physics of Gravity Slope and Pipe Sizing
Reading DWV schematics requires careful inspection of pipe diameter callouts and slope annotations. Standard plumbing codes mandate a minimum downward slope of 1/4 inch per linear foot for pipes 2 inches or smaller, and 1/8 inch per linear foot for larger main trunks.
If a blueprint calls for a 4-inch sanitary main running 40 feet across a floor slab, the drawing implies a total vertical drop of 5 inches. Misinterpreting this pitch requirement on the blueprint leads to slab trenching errors that render gravity drainage impossible.
The Vital Role of Vents and P-Traps in Technical Drawings
Every plumbing fixture shown on a floor plan must connect to a P-trap and a corresponding vent line. Traps maintain a standing water seal that prevents sewer gases (hydrogen sulfide and methane) from entering living spaces.
On technical drawings, vent pipes are indicated by dashed lines branching upward from the sanitary drain line. These dry vents extend upward through the roof, allowing atmospheric pressure to enter the drainage pipe so liquids flow smoothly without pulling water out of fixture traps.
4. Visualizing 3D Spatial Systems with Isometric Riser Diagrams
While two-dimensional floor plans indicate where fixtures sit across a horizontal floor slab, they completely fail to show vertical pipe elevations, overlapping stack connections, or exact fitting angles. To solve this visual limitation, plumbing engineering sets include Isometric Riser Diagrams.
An isometric drawing presents a three-dimensional representation of the piping network on a two-dimensional sheet by aligning vertical lines along a vertical axis and projecting all horizontal lines along 30-degree angles.
How to Read 3D Line Projections on 30-Degree Axes
When reading an isometric plumbing schematic, lines drawn straight up and down represent true vertical pipes rising through walls or chases. Lines drawn at a 30-degree angle to the left or right represent horizontal pipe runs extending across floors or ceilings.
Understanding this 30-degree projection rule enables you to visualize how water supply lines climb inside wall cavities, branch off to feed vanity sinks, and connect back to main vertical supply trunks.
Calculating Fixture Units and Demand Load Tables
Engineering blueprints include schedule tables that assign Drainage Fixture Units (DFU) and Supply Water Fixture Units (WSFU) to every appliance. A standard residential toilet represents a high DFU load (typically 3 to 4 DFUs), whereas a bathroom lavatory sink represents a low load (1 DFU).
Calculating these values allows engineers to size pipe diameters accurately, ensuring adequate water pressure during peak usage hours and preventing sewer backups.
5. Step-by-Step Blueprint Execution and Field Verification Protocol
To successfully read and execute plumbing blueprints on an active job site, follow this structured, five-step verification protocol.
Step 1: Overlay Plumbing Plans onto Architectural Drawings
Never read a plumbing plan in isolation. Overlay the plumbing floor plan (P-101) directly over the structural framing (S-101) and architectural floor plans (A-101). This overlay verification prevents severe field conflicts, such as attempting to route a 4-inch main soil stack directly through a structural steel beam or load-bearing concrete column.
Step 2: Audit Legends, General Notes, and Specifications
Review the general plumbing notes located on the cover sheet (P-000). These written specifications outline exact material requirements—such as requiring Schedule 40 PVC for indoor drainage, Type L Copper or PEX-a for water supply, and cast iron for sound-attenuated vertical drop stacks.
Step 3: Trace Supply and DWV Paths Continuously
Use highlighters to trace mechanical systems from start to finish. Trace cold water lines in blue from the municipal water meter through backflow preventers to every fixture angle stop. Trace hot water lines in red from the water heater out to mixing valves. Finally, trace sanitary waste lines in green from fixture drains down to the main sewer connection.
Conclusion and Final Takeaways
Mastering the skill of reading plumbing blueprints transforms how you manage construction projects, control renovation budgets, and communicate with mechanical contractors. By understanding title blocks, memorizing line types and valve legends, mastering DWV gravity slope physics, and mentally converting 30-degree isometric diagrams into three-dimensional spaces, you eliminate technical ambiguity completely. Take control of your building projects today, audit your drawings with precision, and ensure every pipe in your property is installed flawlessly.
